New Toy, new project.

The head from a Curtis DVD8723.

I bought this on Craig's List and met the seller at Union Station. The ad originally indicated that there were no batteries, however it would seem that the seller installed a fresh pack of NI-MH cells, and was selling this because he is cleaning out his apartment, and would rather someone use it instead of throwing it out. This also explains the hand-made cable and other extras thrown in. (The DVD laser is not working, however the CD laser is, and it is a standard part if I decide to fix it later.)

Overall this is is excellent condition for my purposes, only one wire needed to be fixed (it was pierced by a screw), and only the pin configuration of the ports need to be determined. all are TRS 3.5mm or barrel connector, but 'S-video' and 'composite video' are the most curious. Composite seems to be carried by ring and tip (right channel), but using a TR connector produces the same results.

I plan on using this to build a portable IntelliVision since I have been wanting an IntelliVision again for years, and I figure it would look good in my portfolio.

This is the 25-in-1 IntelliVison Lives .comthat my dad (with some encouragement) has modified to accept an AC adaptor instead of gobbling up so many AA's every day. Sadly this is not an IntelliVision but is a Nintendo-on-a-Chip system made by TechnoSourcehk.com. Internally the glob of epoxy that is supposed to be covering the chip (Dunno which is the NOAC or the cartridge) isn't, exposing the extremely fragile wires. There is also no output filtering or amplification (except for what's on the chip). Between these two efectors of the many screens I've tried none are able to display the image correctly, there always instability and/or a lack of colour.

Fortunately running the signal through a video amplifier seems to cure the instability, and I have many video amplifiers. Unfortunately these are in VCR's, DVD players and tuners that are not very portable. I'm going to wait and see how 'good' the video out from a real IntelliVision is before I start making modifications.

I believe that I will need to scrounge for the parts I need for the cube and SSD locally. I doubt that my stuff will arrive.

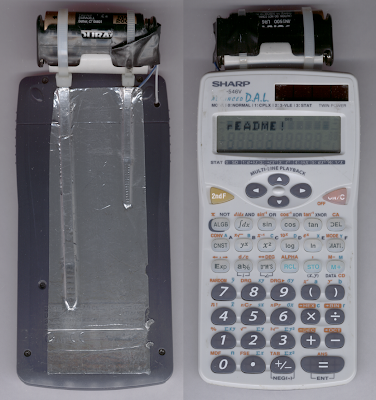

Calculator Battery

My calculator takes Alkaline batteries.
The MFG says LR44's but I know that LR6's will fit.

I just had to drill a couple of holes, solder a cradle to the exposed lugs, add a couple of zipties and duct tape to hold things together.

The back cover especially.
No, the parts still haven't arrived, I fear that customs may have siezed them.


Drop-in replacement PCB

for Nintendo Controller (model 004)

A dear friend of mine has passed away.
We'd often made potentially career ending bets that I'd do some incredible thing (instead of the conservative assigned duty) and my friend would keep admin off of me long enough for me to pull it off.
I've felt fustrated not being able to celebrate completion of the last bet, esp. with ideas for the next.

But this has given me food for thought whilst I wait for parts to arrive for my other projects. I've made many similar (though less damning) bets with other friends, and I'd hate to see them gone before I've finished.

This PCB is for one of my friends who is a NES freak.

This (surviving) friend has [reportedly 1 dozen of the] 'original' controllers that are so badly worn that even the repeated application of a chemtronics.comrubber key repair kit does no good since it the PCB and/or the plastic caps that have completely worn away.

For a laptop I bet that I would produce a replacement controller from a broken NES controller. This controller would either precisely match the original and use the same case, or it would be clever and be far more ergonomically correct.

I got the laptop within a week but my friend has never sent me a broken controller. I have never had a NES myself. And years later, I've now decided to search the internet and see if I can find the information I need to make a replacement PCB for the NES controler.

Search results:
NES ControllerI first tried working from the photo on slagcoin.com but was disappointed by the insufficient 0.05" resolution I'd achieved in the result. I believe that I miscalculated the trapezoidal transformation.

Rather than repeat the process I searched again using a number of premutations and eventually found an x-ray on flickr.com that was perfect; No distortion, square and true. All I had to do was measure and scale.

The result:
  • A drop in replacement PCB that is within 0.025" of the original model-004 (rev.11) NES controller PCB using the original components.
  • Tact (10xx) switches have been drawn to allow replacement in controllers where the button/key caps have worn out.
  • Combs instead of panels to improve the useful life of the membrane switch, and minimize alignment issues.
  • The header has been changed from rev.11's {GND,CLK} to rev.5's {GND,VCC}.
  • 'Umbrellas' have been drawn under the resistors to prevent the ground mask from raining on the use of printed resistors.

Since I have no 4021 I am unable to build this circuit today (without ordering parts). The CMOS 40xx series of IC has been displaced by the TTL 74xx series. If I needed to I would need to make an extra a 74xx design based on what parts I have on hand. This extra design would also make sense if my friend has lost the original PCB or wants to make a spare.

A 74xx redesign:
  • The original printed M5923 resistors have been replaced with common throughhole 207's. These are grouped where the original 4021 was for stylistic reasons.
  • The original 4021 has been replaced with a surface-mount 74HC165 (since that is what I have on hand).
  • A transistor replaces the header and inverts P/S to output SH/LD because the 74165 loads on high unlike the 4012 that loads on low. (see nxp.com datasheets HEF4021B.pdf, 74HCt165)
  • All resistors can be 10k (though not optimum for the transistor inverter/NOT gate).

Modifications not implemented:
  • 40xx instead of 10xx switch because the larger 40xx would break compatibility with the original layout unless I were to intersect the pads, which would then make assembly very difficult.
  • Use of a resistor array instead of discrete components because I'd be inclined to use a single surface mount IC, and evidently a pitch of 0.012" is too small for most people to assemble by hand.
  • LEDs that are activated by button presses because I do not have a NES to test if this works.
  • Turbo/pulser because adding a single IC programmible division counter or frequency generator w/ selector switches would require my (not an electronics hobyist) friend to handle too many pieces, and would require modification of the original case.


Fixya. Fixed/Neutered.

I am a user on Fixya.com.

While they have 'fixed' the problem of hidden formatting consuming space in posts, as encountered here. They have done so by brutally sanitizing the HTML to the point where it will delete any specaly formatted content, often losing the critical distinction between A and A or B and B.

Sorry about asking to be contacted here, but I don't want to expose my current e-mail on a help forum and it is no longer possible for me to embed it to be visible to only the intended recipient on Fixya now.
